Stainless Steel Round Bar Specification : :
ASTM A276 / A479, ASME SA276 / A479
Stainless Steel Round Bar Specification : :
ASTM A276 / A479, ASME SA276 / A479
Dimension Standard :
EN, DIN, JIS, ASTM, BS, ASME, AISI
Size :
14mm-300mm
Thickness :
50 mm to 6000 mm Long

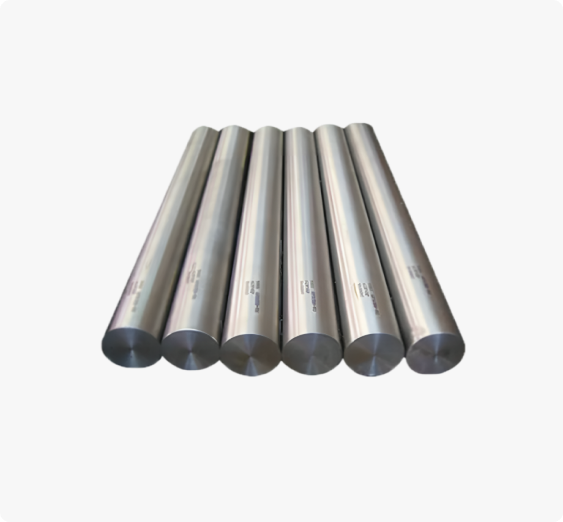

Kvn Steels is a well-known supplier of SS 321/321H Round Bars/Rods. It has a high carbon for better temperature property. Apart from this property, it provides strength and durability. Many elements are used to manufacture this steel but the use of perfect elements makes it more sustainable.
SS 321/321H Round Bars/Rods can be called as an austenitic steel bar. This is available in different sizes, shapes, and grades. It has a low carbon content that makes steel as an ideal raw material. Mostly steel contains a large amount of nickel and chromium. The mixture of nickel and chromium makes it susceptible to warmth treatment.
ASTM A276 Stainless Steel 321H Rods Exporter, Stainless Steel 321 Forged Bar, SS 321 Square Bar, SS 321 Bright Bar, SS ASTM A276 321 Flat Bar, Stainless Steel 321H Rectangular Bar, ASTM A276 Stainless Steel 321H Hex Bar Supplier, SS 321/321H Round Bar Manufacturer in India.
There are following types of SS 321/321H Round Bars/Rods are; bright bar, hex bar, square bar, flat bars, threaded bar, and many more types of bar are available. It has electric and thermal changes.
There is some important specification of round bar and rods which makes them different from the other things. It has some standard dimension, EN, AISI, ASME, etc. finishing can be done in the following polishes, BA finish, black finish, and matt finish, bright polish, rough turned. Length may be from 1 to 6 meters also it considers custom cut. The form of the steel may be in billet, ingot, rectangle, and round, hexagonal, square. The surface of the steel should be cold drawn, polished sandblasting, hot rolled, hairline.
Stainless Steel UNS S32109 / S32100 Hex Bar, DIN 1.4878 Round Rods, SS DIN 1.4541 Flat Bars Dealer, 321 Stainless Steel Polished Round Bar Stockists, ASTM A276 SS 321 Cold Rolled Round Bars, UNS S32100 Hot Rolled Bar Trader, ASME SA276 SS 321H Round Bar Supplier in India.
It is mostly used in industries but also useful for home appliances. This stainless steel is used in the following application; it is used in petrochemicals, power generation, specialty chemicals, oil drilling companies, seawater equipment, heat exchangers, paper and pulp industry, condensers, pharmaceutical, and its equipment.
Tests, that are perform to test the quality and ability of the material. Material testing consists of hardness testing, raw material testing, flattening test, macro and micro test, flaring test, pitting resistance test, intergranular corrosion test. Third-party inspection is included.
Its mechanical property contains, melting point with high density, elongation, yield strength, tensile strength. The packaging is the assurance of safety. These steel bars and rods are packs with poly bags or wooden plates. Also, it can be packed in plastic and bubble wraps.
321/321H Stainless Steel Round Bar Equivalent Grades
STANDARD | UNS | WNR. | JIS | EN |
---|---|---|---|---|
SS 321 | S32100 | 1.4541 | SUS 321 | X6CrNiTi18-10 |
SS 321H | S32109 | 1.4878 | SUS 321H | X12CrNiTi18-9 |
SS 321/321H Square Bar
Stainless Steel 321 Square Bar, UNS S32100 / S32109 Square Bar, DIN 1.4541 Square Rod, ASME SA 276 SS 321H Square Bar, Stainless Steel 321 Polish Square Bar, SS 321/321H Square Rod
SS 321/321H Hex Bar
ASME SA276 SS 321 / 321H Hex Bar, ASTM A276 Stainless Steel 321 Hex Bar, DIN 1.4878 Hex Bar, UNS S32100 Hex Bar, SS 321 / 321H Hex Rod, SS 321 Polish Hex Bar, SS 321/321H Hex Rod
SS 321/321H Rectangular Bar
Stainless Steel ASTM A276 321 Rectangular Bar, UNS S32100 / DIN 1.4541 Rectangular Bar, ASME SA276 SS 321H Rectangular Rod, SS 321 Rectangle Rod, Stainless 321 Rectangle Bar, Polish SS 321H Rectangular Bar Supplier
SS 321/321H Flat Bar
DIN 1.4878 Flat Bar, UNS S32100 Flat Bar, ASME SA 276 Stainless Steel 321 Flat Bar, ASTM A276 321H SS Flat Rod, SS 321/321H Polish Flat Bar
SS 321/321H Bright Bar
ASTM A276 321H Stainless Steel Bright Bar, SS UNS S32100/ S32109 Bright Bar, SS 321 Bright Rod, SS 321/321H Polish Bright Bar
SS 321/321H Forged Bar
UNS S32100 Forged Bar, Stainless Steel 321 Forged Rod, ASTM A276 321 Stainless Steel Polish Forged Bar, ASME SA 276 SS 321H Forged Bar
Stainless Steel Round Bar Specification : :
ASTM A276 / A479, ASME SA276 / A479
Dimension Standard :
EN, DIN, JIS, ASTM, BS, ASME, AISI
Size :
14mm-300mm
Thickness :
50 mm to 6000 mm Long
Length :
1 To 6 Meters, Custom Cut Length
Form :
Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
Chemical Composition of Stainless Steel 321/321H Round Bar
% | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
---|---|---|---|---|---|---|---|---|---|---|
321 | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
321H | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
min:0.04 max:0.10 |
min:18.0 max:20.0 |
max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
Mechanical Properties Of Stainless Steel 321/321H Round Bar
Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
---|---|---|---|---|
321/321H | 75 | 30 | 40 | 217 |
Physical Properties of 321/321H Stainless Steel Round Bar
Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
---|---|---|---|---|---|
at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
Our 321/321H Round Bar & Rods are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
