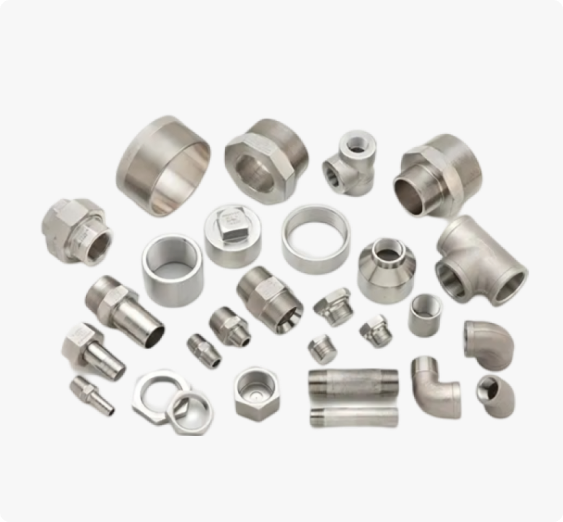

Inconel Forged Fittings Specification :
ASTM B564 / ASME SB564
Inconel Forged Fittings Specification :
ASTM B564 / ASME SB564
Dimension Standard :
ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size :
1/8" NB to 4" NB
Type : :
Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Kvn Steels is a leading manufacturer and supplier of the Inconel 600 Forged Fittings and industrial steel which is compromised of ferrous and nonferrous steel. We even design the customized form of the fittings as per the customer dimensions and specifications. Our all the fittings are well tested and examined before the delivery to the clients. Our all the fittings are well packed for the safety of the fittings so that it can reach the client and vendors safely.
Inconel 600/601/625/718 Forged Fittings is made with the various types of the specification such as tolerance, conditions, types, grade, standards, pressure, shape, size, width, length, thickness, surface, and finish as well. These specifications help the fitting to perform better in hostile environments. These fittings are also designed with several chemical compositions like manganese, sulfur, silicon, Iron, nickel, chromium, copper, carbon, and molybdenum.
Inconel 600 Forged Fittings, ASTM B564 Inconel Alloy 600/601/625/718 Threaded Fittings, Inconel 601 Forged Fittings, Alloy 601 Forged Threaded 90 deg Elbow, ASTM B564 Inconel 625 Socket Weld Fittings Supplier, ASTM B564 Inconel 718 Forged Tee Exporter, Inconel Alloy N06600 Socket Weld Equal Tee, Alloy 600/601/625/718 Forged Fittings Manufacturer in India.
These chemical helps the fittings to get the properties of resistant form the entire general corrosions. These fittings have both physical and mechanical properties like tensile strength, melting point, thermal conductivity, electrical conductivity, proof stress, yield strength, ultimate tensile strength, elongation, density, modulus of expansion, and electrical resistivity as well. These fittings are available in various types such as seamless, perforated, and fabricated, ERW, and EFW.
Inconel UNS N06601 Hex Bushing, 625 Inconel Socket Weld Union Stockists, Inconel Alloy DIN 2.4816 Plug Dealer, UNS N06625 Socket Weld 90 deg Elbow Trader, DIN 2.4851 Forged Pipe Fittings, ASTM SB564 Inconel Alloy 718 High Pressure Forged Pipe Fittings, ASME SB564 Inconel Alloy 600/601/625/718 Forged Fittings Supplier in India
Inconel 600/601/625/718 Forged Fittings is applicable in many of the general works and industries such as offshore oil drilling industries, pharmaceutical industry, chemical equipment, gas processing, electrical equipment, military components, food processing, water supply transportation, paper industry, fertilizer industry, heat exchanger, condensers, pharmaceutical equipment, sweater equipment, shafts, pumps, home appliances, petrochemical industry, and power generation industry as well.
Inconel 600/601/625/718 Forged Fittings is likely in high demand in the market due to the corrosion-resistant properties of these fittings. These fittings have some excellent qualities like ductility, durability, formability, machinability, workability, and welding, these fittings are designed with the heat treatment and welding process. These fittings are best for the use in the chemical processing and high heat temperatures without any deformation to the fittings. These fittings are resistant to the entire general corrosion and seawater rust.
These fittings have to undergo many of the tests like flaring test, macro test, hydrostatic test, chemical test, mechanical test, hardness test, and flattening test as well.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | GOST | OR | BS | JIS | EN |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | N06600 | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | ЭИ868 | NA 13 | NCF 600 | NiCr15Fe |
| Inconel 601 | N06601 | 2.4851 | NC23FeA | XH60BT | ЭИ868 | NA 49 | NCF 601 | NiCr23Fe |
| Inconel 625 | N06625 | 2.4856 | NC22DNB4M | ХН75МБТЮ | ЭИ602 | NA 21 | NCF 625 | NiCr22Mo9Nb |
| Inconel 718 | N07718 | 2.4668 | - | - | - | - | NCF 718 | - |
Inconel 600/601/625/718 Socket Weld Elbow
Inconel 600 Forged Elbow, UNS N06600 / N06601 Threaded Elbow, DIN 2.4856 Forged Elbow, ASME SB564 Inconel Alloy 625/718 45 deg Threaded Elbow, Inconel Alloy 600/601/625/718 Forged Elbow Inconel 625 90 deg Forged Elbow
Inconel 600/601/625/718 Forged Tee
ASME SB564 Inconel 600 Socket Weld Tee, ASTM B564 Inconel 601 Forged Equal Tee, Inconel Alloy 625/718 Forged Elbow, DIN 2.4668 Reducing Tee, UNS N06625 Unequal Tee, Inconel® 625 / 718 Reducing Tee, Alloy 600/601 Threaded Equal Tee
Inconel 600/601/625/718 Forged Cross
Inconel® Alloy 600 Threaded Equal Cross, UNS N07718 / DIN 2.4668 Forged Cross, ASME SB564 Alloy 601 Socketweld Equal Cross, Inconel® 625 Threaded Cross, Inconel Alloy 718 Reducing Cross, Alloy 600/601/625/718 Forged Unequal Cross Supplier
Alloy 600/601/625/718 Full Coupling
DIN 2.4816 Threaded Full Coupling, UNS N06600 Forged Full Coupling, ASME SB564 Inconel 600/601/625/718 Socketweld Full Coupling, ASTM B564 600/601 Alloy Full Coupling
Inconel 600/601/625/718 Forged Half Coupling
ASTM B564 600/601 Inconel Socket Weld Half Coupling, Alloy UNS N06600/ N06601 Half Coupling, ANSI B16.11 Inconel 600/601/625/718 Threaded Half Coupling
Inconel 600 Forged Pipe Cap
UNS N07718 Forged Pipe End Cap, Inconel 600/601/625/718 Threaded Pipe Cap, Inconel® 600 / 601 Socketweld Pipe Cap, ASME SB564 Inconel Alloy 625 Forged Pipe End Cap
Inconel Alloy 600/601/625/718 Forged Union
UNS N06600 Socketweld Union, ANSI B16.5 Inconel 600 Union, ASTM B564 Alloy 601/625 Threaded Union, ASME SB 564 Inconel® Alloy 600/601/625/718 Forged Union
Inconel 600/601/625/718 Forged Bushing
UNS N06601 Bushing, B16.36 Inconel 600/601/625/718 Hex Head Bushing, ASTM B564 Inconel 601 Threaded Bushing, ASME SB 564 Alloy 625 / 718 Forged Threaded Bushing
Inconel 600/601 Forged Nipple
UNS N06625 Threaded Nipple, B16.36 Alloy 600/601/625/718 Socketweld Nipple ASTM B564 Inconel 600/601 Swage Nipple, ASME SB564 Alloy 600 Hex Nipple, Inconel® 625/718 Screwed Pipe Nipple
Inconel Forged Fittings Specification :
ASTM B564 / ASME SB564
Dimension Standard :
ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size :
1/8" NB to 4" NB
Type : :
Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure :
Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.
Chemical Composition of Inconel 600/601/625/718 Forged Fittings
| Grade | Ni | Fe | C | Mn | Si | Cu | Cr | S | Mo | Co | Al | Ti | Nb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 | 72.0 min | 6.0 - 10.0 | 0.15 max | 1.0 max | 0.5 max | 0.5 max | 14.0 - 17.0 | 0.015 max | - | - | - | - | - |
| 601 | 58.0 – 63.0 | Balance | 0.10 max | 1.0 max | 0.50 max | 1.0 max | 21.0 – 25.0 | 0.015 max | 8.0-10.0 | - | 1.0 – 1.7 | - | - |
| 625 | 58.0 max | 5.0 max | .10 max | .50 max | .50 max | - | 20.0 - 23.0 | .015 max | 8.0 - 10.0 | 1.0 max | .40 max | .40 max | 3.15 - 4.15 |
| 718 | 50 - 55 | - | 0.08 max | 0.35 max | 0.35 max | 0.3 max | 17 - 21 | .015 max | 2.8 - 3.3 | 1.0 max | - | - | - |
Mechanical Properties Of Inconel 600/601 Forged Fittings
| Grade | Tensile (psi) | .2% Yield (psi) | Elongation (%) |
|---|---|---|---|
| 600 | 95,000 | 45,000 | 40 |
| 601 | 80,000 | 30,000 | 35 |
Mechanical Properties of Inconel 625
| Temp° F | Tensile (psi) | .2% Yield (psi) | Elongation in 2 “ (%) |
|---|---|---|---|
| 70 | 144,000 | 84,000 | 44 |
| 400 | 134,000 | 66,000 | 45 |
| 600 | 132,000 | 63,000 | 42.5 |
| 800 | 131,500 | 61,000 | 45 |
| 1000 | 130,000 | 60,500 | 48 |
| 1200 | 119,000 | 60,000 | 34 |
| 1400 | 78,000 | 58,500 | 59 |
| 1600 | 40,000 | 39,000 | 117 |
Our Inconel 600 Forged Fittings are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
