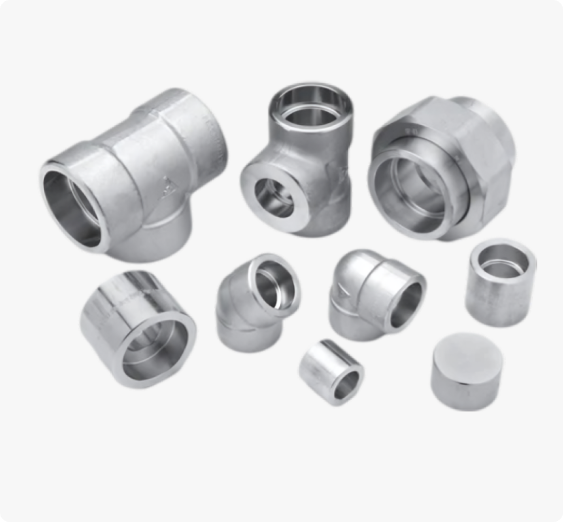

Reliable Incoloy 800 Series Forged Fittings for Harsh Use

Kvn Steels is a leading importer and producer of the Incoloy 800 Forged Fittings and industrial steel which is comprised of ferrous and nonferrous steel. We even design the customized form of the entire fittings as per the customer dimensions and instructions. Our all the fittings are well tested and examined before the delivery to the clients. Our all the products are made with the high quality of the raw material and internal standards. Our all the fittings are well packed for the safety of the fittings.

Incoloy 800/800HT/825 Forged Fittings is made with both physical properties such as ultimate tensile strength, melting point, modulus of expansion, tensile strength, yield strength, thermal conductivity, elongation, electrical conductivity, proof stress, electrical resistivity, and density. These properties help the fittings to get better qualities while production in the industry. These fittings are also made with several specifications like width, types, forms, tolerance, conditions, size, thickness, applications, shape, end, surface, finish, pressure and length as well.

Incoloy 800H Forged Fittings, Alloy 800H Forged Threaded 90 deg Elbow, Incoloy Alloy N08800 Socket Weld Equal Tee, ASTM B564 Incoloy 825 Forged Tee Exporter, Incoloy 800 Forged Fittings, ASTM B564 Incoloy Alloy 800/800H/800HT/825 Threaded Fittings, ASTM B564 Incoloy 800HT Socket Weld Fittings Supplier, Alloy 800/800H/800HT/825 Forged Fittings Manufacturer in India.

These fittings are available in several types such as ERW, EFW, seamless, fabricated and welded. These specifications offer high strength and hardness to the entire types of fittings. These fittings are also constructed with the various types of chemical compositions which help them to resist the entire type of corrosions and rust. These chemicals are like carbon, manganese, silicon, phosphorus, sulfur, chromium, copper, nickel, and iron as well.

Incoloy UNS N08810 Hex Bushing, UNS N08825 Socket Weld 90 deg Elbow Trader, ASTM SB564 Incoloy Alloy 825 High Pressure Forged Pipe Fittings, Incoloy Alloy DIN 1.4876 Plug Dealer, 800HT Incoloy Socket Weld Union Stockists, DIN 1.4958 Forged Pipe Fittings, ASME SB564 Incoloy Alloy 800/800H/800HT/825 Forged Fittings Supplier in India.

Incoloy 800 Forged Fittings are suitable for the sue in many of the industries and general works like condensers, pulp industry, food processing industry, power plant, fabrication industry, structural pipe, pharmaceutical industry, seawater equipment, petrochemical industry, and gas pipeline, offshore oil drilling industry, paper industry, heat exchanger, pharmaceutical equipment, and power generation industry as well.

Incoloy 800/800HT/825 Forged Fittings is made with the various properties which help the fittings to get the properties of the corrosion-resistant in the high heat temperatures and hostile environments easily. These fittings are made with heat treatment, welding and chemical perception process for better hardness and high ductility. These fittings are likely high in demand in the market because of the fittings corrosion-resistant natures from the entire chemicals and high temperatures as well.

Incoloy 800/800H/800HT/825 Forged Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	ЭИ670	Z8NC33-21	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	ЭИ670	-	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	XH32T
Incoloy 825	2.4858	N08825	协袩703	NFE30C20DUM	NCF 825	NA 16	NiCr21Mo	XH38BT

Incoloy 825 Socket Weld Elbow

Incoloy 800/800H/800HT/825 Forged Elbow, UNS N08800 / N08810 Threaded Elbow, DIN 1.4859 Forged Elbow, ASME SB564 Incoloy Alloy 800HT/825 45 deg Threaded Elbow, Incoloy® 800/800H/800HT Forged Elbow, Incoloy 800HT 90 deg Forged Elbow

Incoloy 800/800H/800HT/825 Forged Tee

ASME SB564 Incoloy 800 Socket Weld Tee, ASTM B564 Incoloy 800H Forged Equal Tee, Incoloy Alloy 800HT/825 Forged Elbow, DIN 2.4858 Reducing Tee, UNS N08825 Unequal Tee, Incoloy® 800HT / 825 Reducing Tee, Alloy 800/800H Threaded Equal Tee

Incoloy 800/800H/800HT/825 Forged Cross

Incoloy® Alloy 800 Threaded Equal Cross, UNS N08811 / DIN 2.4858 Forged Cross, ASME SB564 Alloy 800H Socketweld Equal Cross, Incoloy® 800HT Threaded Cross, Incoloy Alloy 825 Reducing Cross, Alloy 800/800H Forged Unequal Cross Supplier

Alloy 800/800H/800HT/825 Full Coupling

DIN 1.4876 Threaded Full Coupling, UNS N08800 Forged Full Coupling, ASME SB564 Incoloy 800/800H/800HT/825 Socketweld Full Coupling, ASTM B564 800/800H Alloy Full Coupling

Incoloy 800/800H/800HT/825 Forged Half Coupling

ASTM B564 800/800H Incoloy Socket Weld Half Coupling, Alloy UNS N08800/ N08810 Half Coupling, ANSI B16.11 Incoloy 800/800H/800HT/825 Threaded Half Coupling

Incoloy 800 Forged Pipe Cap

UNS N08811 Forged Pipe End Cap, Incoloy 800/800H/800HT/825 Threaded Pipe Cap, Incoloy® 800 / 800H Socketweld Pipe Cap, ASME SB564 Incoloy Alloy 800HT Forged Pipe End Cap

Incoloy Alloy 800/800H/800HT/825 Forged Union

UNS N08800 Socketweld Union, ANSI B16.5 Incoloy 800 Union, ASTM B564 Alloy 800H/800HT Threaded Union, ASME SB 564 Incoloy® Alloy 800/800H/800HT/825 Forged Union

Incoloy 800/800H/800HT/825 Forged Bushing

UNS N08810 Bushing, B16.36 Incoloy 800/800H/800HT/825 Hex Head Bushing, ASTM B564 Incoloy 800H Threaded Bushing, ASME SB 564 Alloy 800HT / 825 Forged Threaded Bushing

Incoloy 800/800H Forged Nipple

UNS N08825 Threaded Nipple, B16.36 Alloy 800 Socketweld Nipple ASTM B564 Incoloy 800/800H Swage Nipple, ASME SB564 Alloy 800 Hex Nipple, Incoloy® 800HT/825 Screwed Pipe Nipple

Incoloy Forged Fittings Specification :

ASTM B564 / ASME SB564

Dimension Standard :

ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size :

1/8" NB to 4" NB

Type :

Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure :

Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

Chemical Composition of Incoloy 800/800H/800HT/825 Forged Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Alloy 825	0.05 max	1.0 max	0.5 max	0.03 max	1.5 – 3.0	22.0 min	38.0 – 46.0	19.5 – 23.5	0.2max	0.6 – 1.2

Mechanical Properties Of Incoloy 800/800H Forged Fittings

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Alloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
Alloy 825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %
