Alloy 28 Sheets and Plates Specification :
ASTM B709 / ASME SB709






          Alloy 28 Sheets and Plates Specification :
ASTM B709 / ASME SB709
Dimension Standard :
JIS, AISI, ASTM, GB, DIN, EN, etc
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

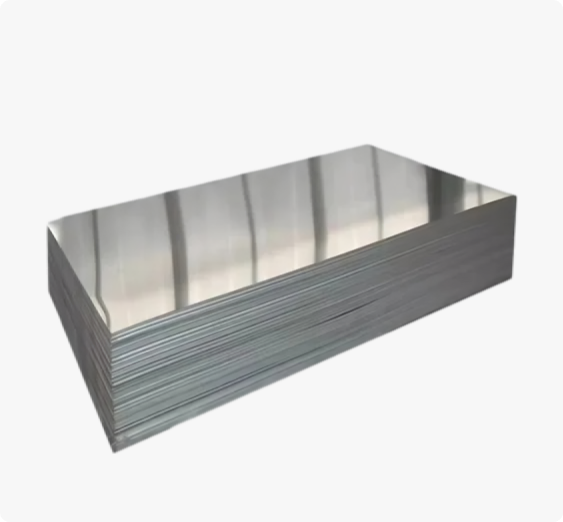

    Kvn Steels is a leading manufacturer and stockiest of the entire industrial stainless steel and Alloy 28 Sheets & Plates. All the products are made with the high quality of the raw material and international grade & standards for the excellent performance in the harsh environments. These products are available in numerous forms and types for a better variety to the customer. We even design the customized form of the product as per the customer instruction and dimensions.
Alloy 28 Sheets & Plates are made with the help of both physical and mechanical properties so that the sheets and plates could get the high strength and hardness of the sheets and plates. Basically, these products are also made with various chemical compositions such as manganese, carbon, phosphorous, silicon, nickel, copper, chromium, and phosphorus as well. These products are also designed with various specifications such as types, sizes, standards, pressure, dimensions, and class and with many other specifications. These products are available in many of the types such as seamless, perforated, ERW, and fabricated as well.
Alloy 28 ASTM B709 Plates, ASTM B709 Alloy 28 Coils Supplier, Alloy 28 #4 Finish Plates, Alloy 28 Chequered Plates Stockists, Alloy 28 Shim Sheets, ASTM B709 Alloy 28 Sheets Exporter, Alloy 28 Hot Rolled Plates, Alloy 28 Perforated Sheets, Alloy 28 CR Sheets, Alloy 28 Sheets and Plates Manufacturer in India.
Alloy 28 Sheets & Plates are suitable for the use in many of the industries and general works such as oil and gas refineries, power generations, water & gas pipeline, petroleum refineries, chemical plants, industrial machinery, and nuclear, thermal and solar power plants. Also, these are applicable in the petrochemical industry, pharmaceutical industry, seawater equipment, pharmaceutical equipment, chemical equipment, paper industry, heat exchanger and condensers as well.
Alloy 28 Chequered Plates Stockists, Alloy 28 Hot Rolled Plates, Alloy 28 #8 Mirror Finish Plates, UNS N08028 Strips, Alloy DIN 1.4563 Sheets Dealer, ASTM B709 Alloy 28 Cold Rolled Sheets, Alloy 28 2B Finish Plates, Alloy UNS N08028 Shim Sheets, DIN 1.4563 Plates, ASME SB709 Alloy 28 Sheets and Plates Supplier in India.
Alloy 28 Sheets & Plates are made with the heat treatment and welding process for better sustainability in hostile environments. These sheets & plates are best for use in chemical and food processing industries. These products are resistant from the pitting corrosion, impact corrosion, crevice corrosion, and stress crevice corrosion as well. Generally, these products have excellent qualities such as welding, workability, machinability, formability, and longer service life in chemical environments.
These products have to undergo many of the tests after the production form the industries such as mechanical test, chemical test, hardness test, impact corrosion test, PMI test, ultrasonic test, hydrostatic test, macro test, micro test, and flaring test as well.
| STANDARD | WERKSTOFF NR. | UNS | EN |
|---|---|---|---|
| Alloy 28® | 1.4563 | N08028 | X1NiCrMoCuN31-27-4 |
Alloy 28 Perforated Sheets
Alloy 28 Perforated Sheets, UNS N08028 Perforated Sheets, DIN 1.4563 Perforated Sheets, ASME SB 709 Alloy 28 Perforated Sheets, Alloy N08028 Perforated Sheets

                            Alloy 28 Chequered Plates
ASME SB709 Alloy 28 Chequered Plates, ASTM B709 Alloy 28 Chequered Plates, DIN 1.4563 Chequered Plates, UNS N08028 Chequered Plates, Alloy 28 Checkered Plates

                            Alloy 28 Shim Sheets
Alloy 28 ASTM B709 Shim Sheets, UNS N08028 / DIN 1.4563 Shim Sheets, ASME SB709 Alloy 28 Shim Sheets, Alloy 28 Shim Sheet, Alloy 28 Shim Sheets, Alloy 28 Shim Sheets Supplier

                            Alloy 28 Coils
DIN 1.4563 Coils, UNS N08028 Coils, ASME SB 709 Alloy 28 Coils, ASTM B709 Alloy 28 Coils

                            Alloy 28 Strips
ASTM B709 Alloy 28 Strips, Alloy UNS N08028 Strips, Alloy 28 Strips, Alloy 1.4563 Strips

                            Alloy 28 Foils
UNS N08028 Foils, Alloy 28 Foils, ASTM B709 Alloy 28 Steel Foils, Alloy 28 Foils

                            Alloy 28 Sheets and Plates Specification :
ASTM B709 / ASME SB709
Dimension Standard :
JIS, AISI, ASTM, GB, DIN, EN, etc
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness :
0.3 mm to 120 mm
Form :
Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing :
Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
Chemical Composition of Alloy 28 Sheets and Plates
| Grade | C % | Si ≤ % | Mn ≤ % | P ≤ % | S ≤ % | Cr % | Mo % | Ni % | N % | Cu % |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy® 28 | ≤ 0.02 | 0.70 | 2.00 | 0.03 | 0.01 | 26.0-28.0 | 3.00-4.00 | 30.0-32.0 | ≤ 0.11 | 0.70-1.50 |
Mechanical Properties Of Alloy 28 Sheets and Plates
| Tensile strength Rm N/mm² | 0.2% Yield strength Rp ≥ N/mm² | Elongation A5 ≥ % | Hardness HB 30 ≤ HB | Modulus of elasticity kN/mm² |
|---|---|---|---|---|
| 500-750 | 220 | 35/30 | 230 | 195 |
Our Alloy 28 Sheets & Plates are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
