Titanium Grades :
Grade 1, Grade 2, Grade 5 & Grade 9
Titanium Grades :
Grade 1, Grade 2, Grade 5 & Grade 9
Material Specification :
ASTM B363
Alloy Classification :
Commercially Pure & Alpha-Beta Titanium
Dimensional Standard :
ASME B16.9

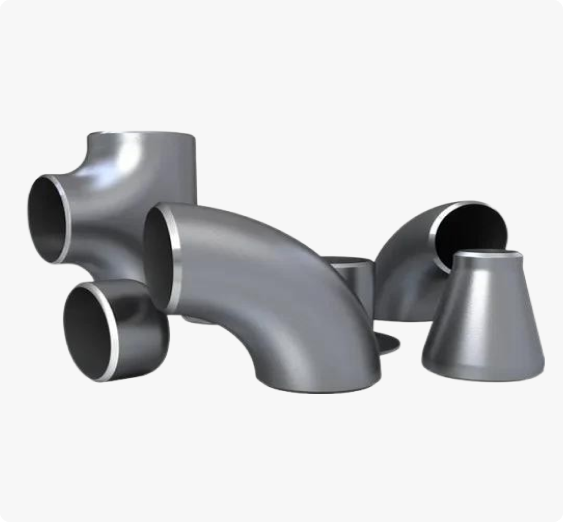

When designing piping systems that demand an exceptional strength-to-weight ratio and unparalleled corrosion resistance, the material choice becomes a critical engineering decision. This is where Titanium Gr 1/2/5/9 Buttweld Fittings truly shine. The secret to their remarkable performance lies in the unique properties of titanium itself—a metal as strong as many steels but nearly half the weight.
The Versatility of Titanium Grades
Titanium's versatility is showcased through its different grades, each engineered for specific operational needs. The range of commercially pure and alloyed options allows engineers to optimize their systems perfectly.
Designed for the Most Corrosive Environments
The primary reason for choosing titanium fittings is their legendary resistance to corrosion.
Securing Excellence for Your Project
The integrity of your pipeline depends not just on the material, but on the quality of the components and the reliability of your supply chain. Finding a trusted Titanium Gr 1/2/5/9 Buttweld Fittings Supplier in UAE or a reputable Titanium Gr 1/2/5/9 Buttweld Fittings Exporter in Dubai is paramount. A dependable partner will provide fittings manufactured and tested in strict accordance with ASTM B363, ensuring consistent quality and performance. By choosing a supplier who can provide full material traceability and certification, you are safeguarding your project against costly downtime and ensuring the long-term, reliable operation of your facility.
| STANDARD | UNS | WNR. |
|---|---|---|
| Titanium Gr 1 | R50250 | 3.7025 |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Titanium Gr 9 | R56320 | - |
Titanium Elbow
Designed to provide smooth directional flow, the Titanium Elbow delivers exceptional corrosion resistance, high strength-to-weight ratio, and outstanding durability in marine, aerospace, and chemical processing applications.
Titanium Alloy Tee
Engineered for reliable branch connections, the Titanium Alloy Tee offers superior resistance to chlorides, seawater, and aggressive chemicals while maintaining excellent structural integrity in demanding industrial environments.
Titanium Eccentric Reducer
Facilitating efficient pipe size transitions, the Titanium Eccentric Reducer minimizes flow turbulence and provides long-term corrosion protection in offshore, desalination, and process piping systems.
Titanium Concentric Reducer
Providing balanced fluid flow through gradual diameter reduction, the Titanium Concentric Reducer combines lightweight construction with exceptional mechanical performance for critical engineering applications.
Titanium Long Stub End
Manufactured for secure lap joint flange assemblies, the Titanium Long Stub End ensures dependable pipeline connections, simplified maintenance, and outstanding resistance to corrosive process media.
Titanium Short Stub End
Designed for compact flange installations, the Titanium Short Stub End offers excellent weldability, dimensional accuracy, and superior corrosion resistance in high-purity and marine piping systems.
Titanium Alloy Cap
Providing reliable end closures for pressure piping systems, the Titanium Alloy Cap protects pipelines against leakage while delivering exceptional resistance to oxidation, seawater, and chemical attack.
Titanium Cross
Creating dependable four-way pipeline intersections, the Titanium Cross delivers excellent mechanical strength, lightweight performance, and long-term reliability for aerospace, offshore, and industrial process systems.
Titanium Pipe Bend
Optimized for smooth flow redirection, the Titanium Pipe Bend withstands demanding pressure, corrosive environments, and cyclic loading while maintaining exceptional structural stability and service life.
Titanium Grades :
Grade 1, Grade 2, Grade 5 & Grade 9
Material Specification :
ASTM B363
Alloy Classification :
Commercially Pure & Alpha-Beta Titanium
Dimensional Standard :
ASME B16.9
Weight Advantage :
High Strength-to-Weight Ratio
Corrosion Property :
Exceptional Chloride Resistance
Fabrication Process :
Precision Welded Construction
Temperature Capability :
Cryogenic to Elevated Service
Inspection :
Dye Penetrant & Ultrasonic Testing
Certification :
EN 10204 3.1
Performance Feature :
Excellent Biocompatibility
Application Areas :
Aerospace, Marine & Medical Engineering
Chemical Composition of Titanium Alloy Seamless and Welded Pipe Fittings
| Grade | C | N | O | H | Ti | Fe |
|---|---|---|---|---|---|---|
| Ti Gr 1 | 0.10 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 max |
| Ti Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Bal | 0.30 max |
| Ti Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | Bal | 0.40 max |
| Ti Gr 9 | ≤ 0.050 | ≤ 0.030 | ≤ 0.15 | ≤ 0.015 | 92.755 - 95.5 | ≤ 0.20 |
Mechanical Properties Of ASME SB363 Titanium Buttweld Pipe Fittings
| Tensile strength (min) | 0.2% yield strength (min) | |||
|---|---|---|---|---|
| Designation | MPa | ksi | MPa | ksi |
| Unalloyed grades | ||||
| grade 1 | 240 | 35 | 170 | 25 |
| grade 2 | 340 | 50 | 280 | 40 |
| grade 5 | 920 | 134 | 866 | 126 |
| grade 9 | 620 | - | 530 | - |
Our Titanium Gr 1/2/5/9 Buttweld Fittings are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
Get clear answers to common queries about our steel products, services, and delivery processes.
Titanium alloys naturally form a protective oxide layer that provides exceptional resistance to seawater, chlorides, oxidizing chemicals, and many corrosive process fluids. Their high strength-to-weight ratio also makes them ideal for demanding industrial applications.
Grade 1 offers maximum corrosion resistance and formability, Grade 2 provides higher strength for general industrial service, Grade 5 delivers exceptional mechanical performance for aerospace and high-pressure applications, while Grade 9 combines excellent strength with superior weldability for lightweight piping systems.
These fittings are widely installed in aerospace manufacturing, offshore platforms, desalination plants, marine engineering, chemical processing facilities, pharmaceutical industries, heat exchangers, and power generation projects.
Titanium Buttweld Fittings are generally manufactured according to ASTM B363, ASME SB363, ASME B16.9, and applicable international dimensional standards while undergoing rigorous quality inspections.
Manufacturers perform Positive Material Identification (PMI), Dye Penetrant Testing (DPT), Ultrasonic Testing (UT), Hydrostatic Testing, Dimensional Verification, and Mechanical Testing before supplying the fittings.
