Grades :
Nickel 200/201, Monel, Inconel, Incoloy, Hastelloy & Alloy 20
Grades :
Nickel 200/201, Monel, Inconel, Incoloy, Hastelloy & Alloy 20
Forms :
Sheets, Plates & Coils
Standards :
ASTM, ASME, UNS & EN
Thickness :
As specified

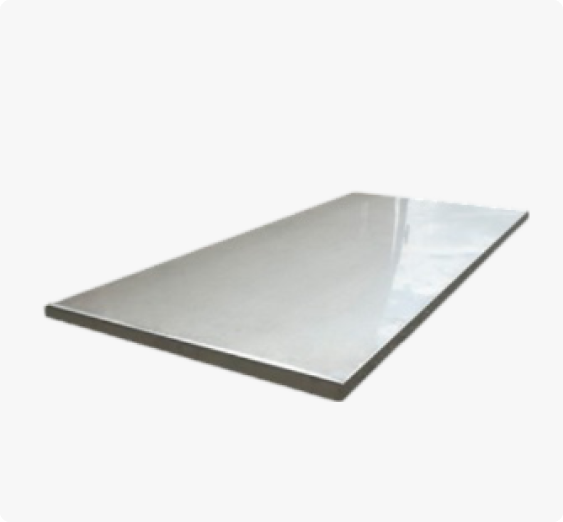

KVN Steels supplies nickel alloy sheets and plates from India for industrial and project requirements across the UAE. The range covers corrosion-resistant and high-temperature alloys selected for applications in oil and gas, petrochemical, chemical processing, power generation, marine and other demanding environments.
Available grades include Nickel 200 and 201, Monel 400 and K500, Inconel, Incoloy, Hastelloy, Alloy 20 and other nickel-based alloys, subject to grade, specification, dimensions and availability.
Nickel alloy selection depends on the required combination of corrosion resistance, temperature capability, mechanical strength and service conditions.
Commercially pure nickel grades used where the application requires appropriate corrosion resistance and chemical-service performance.
Nickel-copper alloys considered for marine, seawater, chemical processing and other corrosive environments, with K500 offering higher mechanical strength than Monel 400.
Inconel grades such as 600, 601, 625 and 718 are selected for applications requiring combinations of high-temperature performance, strength, oxidation resistance and corrosion resistance.
Incoloy 800-series and 825 materials are used in elevated-temperature and corrosive process environments where their specific alloy characteristics match the service requirements.
Hastelloy C22 and C276 are high-performance nickel alloys used for demanding chemical environments where resistance to aggressive corrosion is a primary consideration.
Alloy 20 is considered for chemical-processing and other corrosive applications where its specific resistance characteristics are appropriate.
Nickel Alloy Sheet and Plate Specifications
Supply requirements should be defined according to the applicable material specification and project requirements.
|
Specification |
Details |
|
Product form |
Sheets, plates, coils or cut-to-size |
|
Material grade |
Nickel alloy / UNS designation |
|
Standards |
ASTM, ASME, EN or project specification |
|
Thickness |
As specified |
|
Width |
As specified |
|
Length |
Standard or cut-to-size |
|
Surface condition |
As specified |
|
Heat treatment |
As required by grade/specification |
|
Testing |
Chemical, mechanical, PMI, dimensional or project-specific |
|
Certification |
MTC and other required documentation |
Actual dimensions, conditions and availability depend on the alloy grade, applicable standard, manufacturing route and order requirements.
How to Select the Right Nickel Alloy
The appropriate alloy should be selected according to the actual operating environment.
Consider:
For example, Monel alloys may be considered for marine and seawater environments, while Inconel, Incoloy or Hastelloy grades may be appropriate where high-temperature or severe corrosion resistance is required.
Standards, Testing and Material Certification
Industrial buyers may require documentation demonstrating chemical composition, mechanical properties, dimensional compliance and material traceability.
Depending on the order and specification, documentation and inspection may include:
The applicable documentation should be confirmed before quotation and order placement.
Applications of Nickel Alloy Sheets and Plates
Nickel alloys are used where conventional materials may not provide the required combination of corrosion resistance, temperature performance or mechanical properties.
Typical applications include:
The suitability of a particular grade depends on the operating environment and applicable engineering requirements.
Nickel Alloy Supply from India to UAE Markets
KVN Steels supplies nickel alloy sheets and plates from India for procurement requirements across UAE markets.
Key supply locations include:
Nickel Alloy Sheet and Plate Pricing
Pricing depends on several technical and commercial variables, including:
Grades :
Nickel 200/201, Monel, Inconel, Incoloy, Hastelloy & Alloy 20
Forms :
Sheets, Plates & Coils
Standards :
ASTM, ASME, UNS & EN
Thickness :
As specified
Dimensions :
Standard or custom
Condition :
Annealed or solution treated
Finish :
Mill or specified finish
Testing :
Chemical, Mechanical, PMI & Dimensional
Certification :
MTC / EN 10204 3.1
Traceability :
Heat-number identification
Chemical Composition of Hastelloy C22/C276 Sheets and Plates
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 max | 20.00 - 22.50 | 2.00 - 6.00 | 12.50 - 14.50 | 0.02 max |
| Hastelloy C276 | 0.01 max | 1.0 max | 0.08 max | 2.50 max | Balance | 14.5-16.5 | 4-7 | 15-17 | 0.04 max | 0.04 max |
Mechanical Properties Of Hastelloy C22/C276 Sheets and Plates
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| C22 | 115 | 55 | 60 | 89 |
| C276 | 110 | 52.6 | 62 | - |
Our Nickel Alloys Sheets and Plate Supplier are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
Get clear answers to common queries about our steel products, services, and delivery processes.
Nickel 200 and 201, Monel 400 and K500, Inconel 600, 601, 625 and 718, Incoloy 800-series and 825, Hastelloy C22 and C276, and Alloy 20 can be supplied subject to the required specification, dimensions and availability.
Select the grade based on service temperature, pressure, corrosive media, chemical concentration, mechanical requirements, fabrication conditions and the applicable ASTM, ASME or project specification. The correct grade should be confirmed against the actual operating environment rather than selected solely by alloy family.
The applicable ASTM standard depends on the alloy and product form. For example, Nickel 200/201 products are commonly specified to ASTM B162, Monel 400 sheet and plate to ASTM B127, Inconel 625 to ASTM B443, Incoloy 800-series products to ASTM B409, and Alloy 20 to ASTM B463. The required standard should be confirmed against the grade and project specification.
Yes, EN 10204 3.1 Mill Test Certificates can be supplied where required by the applicable specification and purchase order. Documentation may include chemical composition, mechanical properties, heat-number traceability and other inspection records specified for the order.
Custom dimensions can be evaluated according to the alloy grade, thickness, available material and project requirements. When requesting a quotation, provide the required thickness, width, length, quantity and applicable specification so the supply option can be assessed accurately.
The distinction generally relates to product thickness, but the applicable definition can vary by material specification and industry practice. For procurement, buyers should specify the exact grade, thickness, dimensions and governing standard rather than relying solely on the terms sheet or plate.
Inconel and Incoloy grades are commonly considered for high-temperature applications, with the appropriate grade depending on temperature, oxidation, carburisation, creep, corrosion and mechanical requirements. Incoloy 800-series grades, for example, are designed for elevated-temperature service, while specific Inconel grades provide different combinations of strength and corrosion resistance.
Yes. Nickel alloy sheets and plates can be supplied for UAE projects based on the required alloy grade, dimensions, quantity, applicable specification, certification, inspection requirements and delivery location.
Provide the alloy grade or UNS number, sheet or plate form, thickness, width, length, quantity, applicable ASTM/ASME or project specification, testing and certification requirements, delivery location and required delivery schedule. You can also submit an RFQ, drawing or technical specification for review.
Pricing depends on the alloy grade, nickel and alloying-element content, dimensions, quantity, material condition, testing, certification, inspection, cutting requirements, freight and delivery location. Because these variables can materially affect the final cost, project-specific pricing should be requested rather than relying on a generic price per kilogram.
