Nickel 200 Forged Fitting | Nickel 201 Forged Tee Supplier

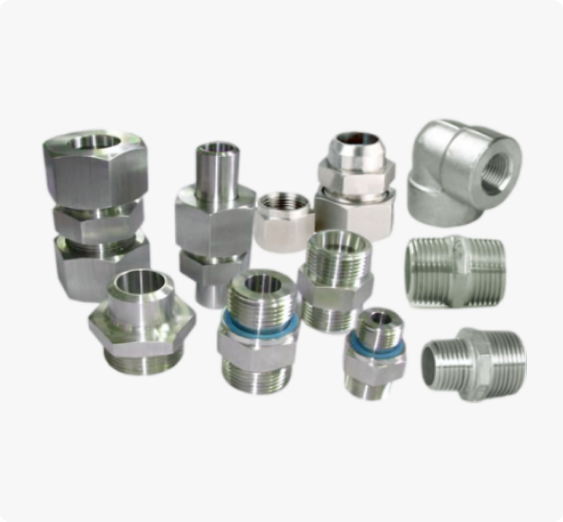

Nickel 200 Forged Fittings are high-performance, corrosion-resistant components designed for challenging industrial environments. Made from premium Nickel 200 alloy, these fittings provide excellent resistance to acids, caustic solutions, and high-temperature fluids. They are widely utilized in chemical plants, petrochemical pipelines, marine applications, and pharmaceutical processing units, ensuring durability, safety, and efficient fluid handling in critical operations.

The range of Nickel 200 forged fittings includes Nickel 200 Socket Weld Elbow, Nickel 201 Forged Tee, Nickel 201 Forged Nipple, Nickel 201 Forged Bushing, and Alloy 200 Forged Union. Each component is engineered for precise, leak-proof connections in complex piping systems. These fittings are essential for high-pressure and high-temperature applications, providing secure joints and seamless integration across industrial pipelines, reactors, and pressure vessels.

The exceptional corrosion resistance, mechanical strength, and long service life of Nickel 200 Forged Fittings reduce maintenance requirements and ensure continuous, reliable operation. Components such as the Nickel 200 Socket Weld Elbow and Nickel 201 Forged Tee enhance the efficiency and safety of industrial pipelines, while Alloy 200 Forged Union and Nickel 201 Forged Bushing offer flexible, durable solutions for fluid handling systems. These fittings are trusted across chemical, marine, and high-temperature processing industries for performance, reliability, and operational excellence.

200/201 Nickel Forged Fittings Equivalent Grades

STANDARD	UNS	WNR.	JIS	EN
Nickel 200	N02200	2.4066	NW 2200	Ni 99.2
Nickel 201	N02201	2.4068	NW 2201	LC-Ni 99

Nickel 200/201 Socket Weld Elbow

Nickel 200 Forged Elbow, UNS N02200 / N02201 Threaded Elbow, DIN 2.4068 Forged Elbow, ASME SB564 Nickel Alloy 200/201 45 deg Threaded Elbow, Nickel 200 90 deg Forged Elbow

Nickel 200/201 Forged Tee

ASME SB564 Nickel 201 Socket Weld Tee, ASTM B564 Nickel 200 Forged Equal Tee, DIN 2.4066 Reducing Tee, UNS N02201 Unequal Tee, Nickel® 200 / 201 Reducing Tee, Alloy 200 Threaded Equal Tee

Nickel 200/201 Forged Cross

Nickel® Alloy 200 Threaded Equal Cross, UNS N02200 / DIN 2.4066 Forged Cross, Alloy 201 Socketweld Equal Cross, Nickel 200 Threaded Cross, Nickel Alloy 200 Reducing Cross, Alloy 201 Forged Unequal Cross

Alloy 200/201 Full Coupling

DIN 2.4066 Threaded Full Coupling, UNS N02200 Forged Full Coupling, ASME SB564 Nickel 201 Socketweld Full Coupling, ASTM B564 200 Alloy Full Coupling

Nickel 200/201 Forged Half Coupling

ASTM B564 200/201 Nickel Socket Weld Half Coupling, Alloy UNS N02200/ N02201 Half Coupling, ANSI B16.11 Nickel 200 Threaded Half Coupling

Nickel 200/201 Forged Pipe Cap

UNS N02200 Forged Pipe End Cap, Nickel 200 Threaded Pipe Cap, ASTM B564 Nickel® 200 Socketweld Pipe Cap, ASME SB564 Nickel Alloy 201 Forged Pipe End Cap

Alloy 200/201 Forged Union

UNS N02200 Socketweld Union, ANSI B16.5 Nickel 200 Union, ASTM B564 Alloy 200/201 Threaded Union, ASME SB 564 Nickel® 200 / 201 Forged Union

Nickel 200/201 Forged Bushing

UNS N02200 Bushing, B16.36 Nickel 200 Hex Head Bushing, ASTM B564 Nickel 200/201 Threaded Bushing, ASME SB 564 Alloy 200 / 201 Forged Threaded Bushing

Nickel 200/201 Forged Nipple

UNS N02200 Threaded Nipple, B16.36 Alloy 200 Socketweld Nipple ASTM B564 Nickel 201 Swage Nipple, ASME SB564 Alloy 201 Hex Nipple, Nickel® 200/201 Screwed Pipe Nipple

Nickel Forged Fittings Specification :

ASTM B564 / ASME SB564

Dimension Standard :

ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size :

1/8" NB to 4" NB

Type :

Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure :

Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

Chemical Composition of Nickel 200/201 Forged Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min
Nickel 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Mechanical Properties Of Nickel 200/201 Forged Fittings

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %
Nickel 201	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Physical Properties of 200/201 Nickel Forged Fittings

Density (Kg.m-1)	84.3
Magnetic Permeability (20°C)	<1.005
Curie Temperature (°C)	-90
Young’s Modulus (N/mm2)	179 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	418
Specific Electrical Resistance, 20°C (?O.m)	0.62
Thermal conductivity,20°C (W.m-1.°K-1)	17.5
Mean coefficient of thermal expansion, 20-100°C (°K-1)	13.4 x 10-6
