What is the difference between Monel 400 and Monel K500?

Monel K500 contains aluminum and titanium, which increases its strength and hardness compared to Monel 400.

Can Monel forged fittings be used effectively in seawater environments?

Yes, Monel alloys offer excellent resistance to seawater corrosion, making them ideal for marine environments.

What pressure ratings are available?

Monel forged fittings are available in pressure classes ranging from 2000 to 9000 PSI.

Do you provide customized sizes?

Yes, fittings can be manufactured as per client specifications and project requirements.

What certifications do you provide?

We supply fittings with Mill Test Certificates (MTC) and support third-party inspections when required.

Monel 400 & K500 Forged Fittings Supplier in UAE

Monel 400 and Monel K500 forged fittings are precision-engineered nickel-copper alloy components designed for extreme corrosion resistance, high mechanical strength, and long service life. These fittings are manufactured in accordance with ASTM B564 / ASME SB564 standards and are widely used in industries where seawater exposure, chemical corrosion, and pressure integrity are critical.

At KVN Steels, we supply and export Monel forged fittings to UAE, Saudi Arabia, Qatar, Oman, Kuwait, and global markets, ensuring consistent quality, certified materials, and fast delivery.

Understanding Monel 400 & K500 Forged Fittings

Nickel-copper alloy pipe fittings used in corrosive environments
Available in threaded and socket weld configurations
Monel 400 offers excellent corrosion resistance
Monel K500 provides enhanced strength and hardness
Suitable for marine, oil & gas, and chemical industries

Monel 400 and Monel K500: Core Differences Explained

Property	Monel 400	Monel K500
Alloy Type	Nickel-Copper	Nickel-Copper + Aluminum & Titanium
Strength	Moderate	High (Age Hardened)
Corrosion Resistance	Excellent	Excellent
Hardness	Lower	Higher
Applications	Marine, Chemical	Offshore, High-Stress Systems

Use Monel 400 for corrosion-focused environments and Monel K500 where additional strength and wear resistance are required.

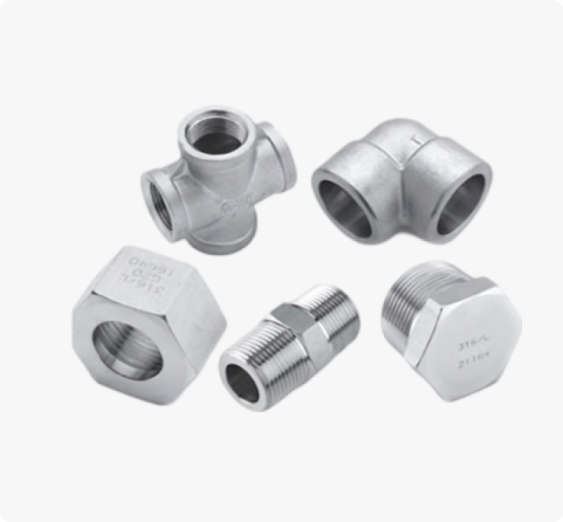

Types of Monel Forged Fittings Available

We manufacture and supply a complete range of forged fittings in both Monel 400 and K500 grades:

Socket Weld Elbow (45°, 90°)
Threaded Elbow
Tee (Equal & Reducing)
Coupling (Full & Half)
Union
Cap
Bushing
Nipple

All fittings are available in standard and customized dimensions as per project requirements.

Industrial Applications

Monel forged fittings are preferred in industries where conventional stainless steel fails due to aggressive environments.

Marine & Shipbuilding

Resistant to seawater corrosion and biofouling

Oil & Gas Industry

Applied in high-pressure piping networks, offshore installations, and subsea infrastructure systems

Chemical Processing

Handles acids, alkalis, and corrosive chemicals efficiently

Power Generation

Suitable for heat exchangers and boiler systems

Aerospace & Defense

Used in high-strength and high-reliability components

400/K500 Monel Forged Fittings Equivalent Grades

STANDARD	UNS	WNR.	JIS	EN
Monel 400	N04400	2.4360	NW 4400	NiCu30Fe
Monel K500	N05500	2.4375	-	-

Elbows (45° & 90°)

• Available in both socket weld and threaded configurations • Grades include UNS N04400 and N05500 • Compliant with DIN 2.4375 specifications

Tees (Equal & Reducing)

• Offered in equal, reducing, and unequal types • Socket weld and threaded variants available • Suitable for balanced and directional flow distribution

Cross Fittings

• Designed for four-way flow distribution systems • Available in equal and reducing configurations • Manufactured in threaded and socket weld forms • Conforms to ASME SB564 and DIN standards

Full Couplings

• Used for connecting two pipes of the same diameter • Available in threaded and socket weld types • Suitable for high-pressure applications

Half Couplings

• Ideal for branch connections in piping systems • Available in socket weld and threaded options • Produced according to ANSI B16.11 specifications • Offered in multiple sizes and pressure ratings

Pipe Caps

• Designed to seal pipe ends securely • Available in threaded and socket weld designs • Manufactured in compliance with ASTM B564 standards • Suitable for high-pressure and corrosive environments

Unions

• Allow easy disconnection and maintenance of pipelines • Available in threaded and socket weld configurations • Manufactured as per ANSI and ASME standards • Ensures leak-proof and reusable connections

Bushings

• Used for reducing pipe size within a system • Available in hex head and threaded types • Manufactured according to ASME and ASTM standards • Ensures secure and compact fitting transitions

Nipples

• Short pipe connectors for extending or joining pipelines • Available in threaded, socket weld, hex, and swage types • Suitable for high-pressure and precision connections

Monel Forged Fittings Specification :

ASTM B564 / ASME SB564

Dimension Standard :

ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size :

1/8" NB to 4" NB

Type :

Socket Weld (SW), Threaded (NPT/BSP)

Pressure Class :

2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Chemical Composition of Monel 400/K500 Forged Fittings

Grade	Ni	Fe	C	Mn	Si	Cu	Al	Ti	S
400	63.0- 70.00 max	2.50 max	0.3 max	2.00 max	0.50 max	Remainder	-	-	0.024 max
K500	63.0 min	05 - 2	0.25 max	1.5 max	0.5 max	27.0 - 33.0	2.3 - 3.15	0.35 - 0.85	0.010 max

Mechanical Properties Of Monel 400/K500 Forged Fittings

Grade	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness (HRb)
400	75 to 90	25 to 50	60 to 35	60 to 80
K500	Psi – 1,60,000 , MPa – 1100	Psi – 1,15,000 , MPa – 790	20 %	-

Physical Properties of 400/K500 Monel Forged Fittings

Density@ Room Temp	0.318 lb/in3
Elastic Modulus @ 70ºF (tension)	26.0 x 106psi
Specific Heat @ 70°F	0.102 Btu/lb/°F
Melting Point	2370°F to 2460°F
Thermal Conductivity @ 70°F	151 Btu • in/h/ft 2 /°F
Electrical Resistivity @ 70°F	0.511 μ Ω • m
