Hastelloy Forged Fittings Specification :
ASTM B564 / ASME SB564
Hastelloy Forged Fittings Specification :
ASTM B564 / ASME SB564
Dimension Standard :
ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size :
1/8" NB to 4" NB
Type :
Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

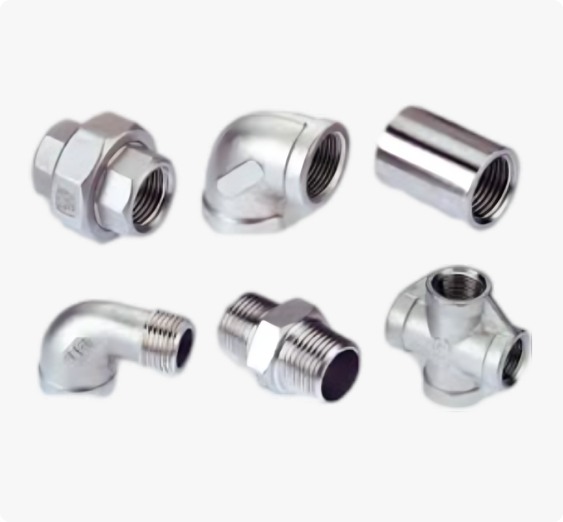

Hastelloy C22 Forged Fittings are premium, corrosion-resistant components engineered for the most demanding industrial environments. Made from high-performance Hastelloy C22 alloy, these fittings deliver outstanding resistance against oxidizing and reducing agents, acids, and other aggressive chemicals. Widely used in chemical processing, petrochemical plants, pharmaceuticals, and marine industries, these forged fittings ensure durability, safety, and operational efficiency in critical piping and fluid handling systems. Made from high-performance Hastelloy C22 alloy, they offer exceptional resistance to oxidizing and reducing chemicals, acids, and high-temperature fluids.
The range of Hastelloy C22 forged components includes C276 Socket Weld Elbow, C276 Forged Tee, Hastelloy C22 Forged Cross, and Alloy C22 Full Coupling, each designed to meet specific piping requirements. Engineers and plant operators choose these fittings for high-pressure, high-temperature, and corrosive environments, ensuring leak-proof, reliable connections. These fittings are essential in pipelines, reactors, pressure vessels, and specialized chemical systems where safety, precision, and longevity are non-negotiable.
With exceptional mechanical strength and superior chemical resistance, Hastelloy C22 Forged Fittings provide reduced maintenance, longer service life, and compliance with stringent industrial safety standards. Applications of C276 Socket Weld Elbow and C276 Forged Tee highlight their versatility in complex piping networks, while Alloy C22 Full Coupling and Hastelloy C22 Forged Cross ensure seamless integration in critical process systems. By combining durability, reliability, and performance, these forged fittings remain the preferred choice for industries handling aggressive chemicals and extreme operational conditions.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
Hastelloy C22/C276 Socket Weld Elbow
Hastelloy C22 Forged Elbow, Hastelloy Alloy UNS N06022 / N10276 Threaded Elbow, Hastelloy DIN 2.4819 Forged Elbow, ASME SB564 Hastelloy Alloy C22/C276 45 deg Threaded Elbow, Hastelloy Alloy C22 90 deg Forged Elbow
Hastelloy C22/C276 Forged Tee
ASME SB564 Hastelloy C276 Socket Weld Tee, ASTM B564 Hastelloy C22 Forged Equal Tee, Hastelloy DIN 2.4602 Reducing Tee, UNS N10276 Unequal Tee, Hastelloy® C22 / C276 Reducing Tee, Alloy C22 Threaded Equal Tee
Hastelloy C22/C276 Forged Cross
Hastelloy® Alloy C22 Threaded Equal Cross, UNS N06022 / DIN 2.4602 Forged Cross, ASME SB564 Alloy C276 Socketweld Equal Cross, Hastelloy® C22 Threaded Cross, Hastelloy C22 Reducing Cross, Alloy C276 Forged Unequal Cross Supplier
Alloy C22/C276 Full Coupling
DIN 2.4602 Threaded Full Coupling, UNS N06022 Forged Full Coupling, ASME SB564 Hastelloy C276 Socketweld Full Coupling, ASTM B564 C22 Alloy Full Coupling
Hastelloy C22/C276 Forged Half Coupling
ASTM B564 C22/C276 Hastelloy Socket Weld Half Coupling, Alloy UNS N06022/ N10276 Half Coupling, ANSI B16.11 Hastelloy C22 Threaded Half Coupling
Hastelloy C22/C276 Forged Pipe Cap
UNS N06022 Forged Pipe End Cap, Hastelloy C22 Threaded Pipe Cap, ASTM B564 Hastelloy® C22 Socketweld Pipe Cap, ASME SB564 Hastelloy Alloy C276 Forged Pipe End Cap
Alloy C22/C276 Forged Union
UNS N06022 Socketweld Union, ANSI B16.5 Hastelloy C22 Union, ASTM B564 Alloy C22/C276 Threaded Union, ASME SB 564 Hastelloy® C22 / C276 Forged Union
Hastelloy C22/C276 Forged Bushing
UNS N06022 Bushing, B16.36 Hastelloy C22 Hex Head Bushing, ASTM B564 Hastelloy C22/C276 Threaded Bushing, ASME SB 564 Alloy C22 / C276 Forged Threaded Bushing
Hastelloy C22/C276 Forged Nipple
UNS N06022 Threaded Nipple, B16.36 Alloy C22 Socketweld Nipple ASTM B564 Hastelloy C276 Swage Nipple, SB564 Alloy C276 Hex Nipple, Hastelloy® C22/C276 Screwed Pipe Nipple
Hastelloy Forged Fittings Specification :
ASTM B564 / ASME SB564
Dimension Standard :
ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size :
1/8" NB to 4" NB
Type :
Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure :
Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.
Hastelloy Forged Fittings Specification :
ASTM B564 / ASME SB564
Dimension Standard :
ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Type :
Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure :
Chemical Composition of Hastelloy C22/C276 Forged Fittings
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 max | 20.00 - 22.50 | 2.00 - 6.00 | 12.50 - 14.50 | 0.02 max |
| Hastelloy C276 | 0.01 max | 1.0 max | 0.08 max | 2.50 max | Balance | 14.5-16.5 | 4-7 | 15-17 | 0.04 max | 0.04 max |
Mechanical Properties Of Hastelloy C22/C276 Forged Fittings
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| C22 | 115 | 55 | 60 | 89 |
| C276 | 110 | 52.6 | 62 | - |
Our Hastelloy C22 Forged Fittings are used in a wide range of applications and various industries. Below are a few of them:
Application Industries
Aerospace Industry
Food Processing Industry
Pulp & Paper Indusry
Energy Industry
Pharmaceuticals Industry
Power Plant Industry
Chemical Industry
Oil and Gas Industry
