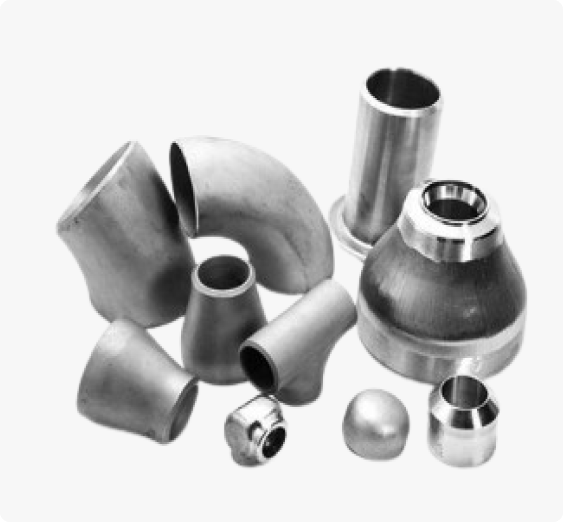

Hastelloy C22 Buttweld Fittings | C276 Fitting Supplier Mumbai

Kvn Steels. is the reliable manufacturer, supplier, and exporter of variant metal works. Our diverse product range is inclusive of Hastelloy C22/C276 Buttweld Fittings. These are the pipe fittings used for variant manufacturing and industrial sections of the economy. They are good to work under pressure and stress. Hence, they have been used in making the leak-proof pipelining to handle the moderate as well as high pressure during the distribution of fluids, gases, etc. They also have excellent anti-rusting attributes that make them reliable to use.

They can be availed in different fabricated formations like seamless, ERW, welded, and fabricated. Its maximum melting point goes up to 1443 degrees Celsius (or 2430 degrees Fahrenheit). Also, it has a maximum elongation range to 30%. Moreover, they have a moderate range of tensile as well as yield strengths. Hence, some key industries make vast use of Hastelloy c22/C276 Buttweld Fittings like heavy oil refineries, petrochemicals, acids, nuclear power, bitumen upgrades, etc.

Hastelloy C22 Pipe Fittings, ASTM B366 Hastelloy Alloy C276 Buttweld Fittings, UNS N06022 Pipe Elbow, ASME SB366 Hastelloy Alloy C-22 Pipe Bend Exporter, DIN 2.4819 Stub End, UNS N10276 Seamless Fittings, ANSI B16.9 Alloy C-276 Pipe Cap, Hastelloy Butt weld Pipe Fittings Manufacturer in India.

They have high-end and economical applications like petroleum industries, power, chemical, constructional industries, gas, metallurgy, and shipbuilding, etc.The governing theory behind the specifications, chemical as well as mechanical properties of grade C22 and C276 is covered under the ASTM B366 and ASME SB366 standards.

Hastelloy C22 Piggable Bend Stockist, MSS SP-43 or MSS SP-79 Hastelloy C276 Welded Pipe Fittings, ASTM B366 Hastelloy Fittings, DIN 2.4602 LR/ SR Elbow Trader, Hastelloy® Alloy C22 Reducer Dealer, Hastelloy C-276 Buttweld Elbow, ANSI B16.28 Hastelloy C22/C276 Equal/ Reducing Tee Supplier in India.

They are available in different types based on the shapes and their related functions. Like tees are used for the distribution and collection of fluids i.e. running through the pipelines. The pipe bends are used for smooth change in the direction of pipelines. On the other hand, 45-degree elbows are also used to change the direction but by only 45-degree angle

Likewise, the pipe caps are there for making the end of the pipeline covered and secure. In this way, there are many other types of buttweld fittings like crosses, pipe unions, pipe coupling, threaded pipes, pipe bends, miter bends, and many more.

Hastelloy c22/C276 Buttweld Fittings are produced via the process of push, press, forge, and cast. Then they ought to present forth some significant certificates like 100 % raw material purity, third party inspection reports certificates, 100% radiography test reports, flattening test certificates, flaring test report, etc.

C22/C276 Hastelloy ASTM B366 Buttweld Fittings Equivalent Grades

STANDARD	UNS	WNR.	EN	JIS	GOST	OR
Hastelloy C22	N06022	2.4602	NiCr21Mo14W	NW 6022	-	-
Hastelloy C276	N10276	2.4819	NiMo16Cr15W	NW 0276	ХН65МВУ	ЭП760

Hastelloy C22/C276 Elbow

Hastelloy C22 90 Deg Elbow, Hastelloy C276 45 Deg Elbow, UNS N06022 180 Deg Elbow, UNS N10276 LR Elbow, DIN 2.4602 SR Elbow, ANSI B16.9 Alloy C22 90 Degree Short Radius Elbow, Hastelloy C276 45 Deg Long Radius Elbow

Hastelloy Alloy C22/C276 Tee

ASME B16.9 Hastelloy C22 Equal Tee, UNS N10276 Pipe Tee, DIN 2.4602 Butt weld Tee, ASME SB366 Hastelloy C276 Reducing Tee manufacturer, DIN 2.4819 Unequal Tee, Alloy UNS N10276 Straight Tee

Hastelloy C22/C276 Eccentric Reducer

ASTM B366 Hastelloy C22 Eccentric Reducer Supplier, B16.9 Hastelloy C276 Eccentric Reducer, Alloy UNS N06022 / N10276 Eccentric Reducers, DIN 2.4602 / 2.4819 Eccentric Reducer

Hastelloy C22/C276 Concentric Reducer

ANSI B16.9 Hastelloy C22 Concentric Reducer Supplier, ASME SB366 Hastelloy C276 Concentric Reducer, Alloy UNS N06022 / N10276 Concentric Reducers, DIN 2.4602 / 2.4819 Concentric Reducer

Hastelloy C22/C276 Long Stub End

ASME B16.9 Hastelloy Alloy C22 Long Stub End Supplier, ASTM B366 Hastelloy C276 Long Stub Ends, Alloy UNS N06022 / N10276 Lap Joint Stub End, DIN 2.4602 / 2.4819 Long Stub End

Hastelloy C22/C276 Short Stub End

ASTM B366 / SB366 Hastelloy C22 Short Stub End Supplier, ASME B16.9 Hastelloy Alloy C276 Short Stub Ends, Alloy UNS N06022 / N10276 Short Stub Ends, DIN 2.4602 / 2.4819 Short Stub End

Hastelloy C22/C276 Cap

ASTM B366 / SB366 Hastelloy C22 Pipe Cap Supplier, ASME B16.9 Hastelloy Alloy C276 End Pipe Cap, Alloy UNS N06022 Pipe End Cap, UNS N10276 Buttweld Cap, DIN 2.4602 / 2.4819 End Cap

Hastelloy C22/C276 Cross

ASTM B366 / SB366 Hastelloy C22 Equal Cross, ASME B16.9 Hastelloy Alloy C276 Buttweld Cross, Alloy UNS N06022 / N10276 Unequal Cross, DIN 2.4602 / 2.4819 Reducing Cross

Hastelloy C22/C276 Pipe Bend

ASME SB 366 Hastelloy Alloy C22 Pipe Bend Exporter, B16.9 Hastelloy C276 Piggable Bend, Alloy UNS N06022 / N10276 U Bend, DIN 2.4602 Long Radius Bend, DIN 2.4819 Buttweld Bend

Specifications :

ASTM B366 / ASME SB366

Dimensions :

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size :

Seamless Butt Weld Fittings : 1/2" - 10" | Welded Butt Weld Fittings : 1/2" - 48"

Schedule :

SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75

Bending Radius :

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type :

Seamless / ERW / Welded / Fabricated

Thickness :

20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Chemical Composition of Hastelloy C22/C276 Seamless and Welded Pipe Fittings

Grade	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr	W	V
Hastelloy C22	Balance	0.010 max	12.5-14.5	0.50 max	0.08 max	2-6	0.02 max	0.02 max	2.5 max	20-22.5	2.5-3.5	0.35 max
Hastelloy C276	Balance	0.01 max	15–17	1.0 max	0.08 max	4–7	0.04 max	0.03 max	2.5 max	14.5–16.5	3–4.5	0.35 max

Mechanical Properties Of ASME SB366 Hastelloy Buttweld Pipe Fittings

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000, MPa – 690	Psi – 45000, MPa – 310	45 %
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
