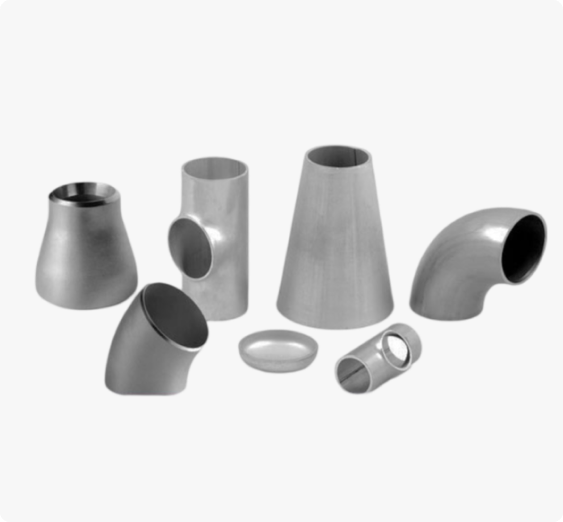

Incoloy 800, 800HT, 825 Buttweld Fittings

Wide range of Incoloy 800/800HT/825 Buttweld Fittings are manufactured, exported and supplied by Kvn Steel and Engg. Co. Various types and grades are available such as nickel alloy and alloy steel produced as per international standards.

Incoloy Buttweld Fittings comprises concentric reducer, long radius elbow, and Tees. However, Incoloy Buttweld Fittings are offered as per customer’s requirement in customized thickness and size. Buttweld Fittings are manufactured by using alloys and metals. Incoloy Buttweld fittings are nickel-chromium fittings which are resistant to oxidation even at high temperature. Incoloy 800 has further modified to ensure high-temperature properties. Incoloy 800HT monitors chemical properties for temperature strength and temperature corrosion. Moreover, Incoloy 825 is blessed with good mechanical properties. Incoloy 825 has excellent resistance in all environments. Incoloy Buttweld fittings are developed to deliver exceptional performance meeting the demands. However, MIG or TIG welding applications are rated best for Buttweld Fittings.

ASME SB366 Incoloy Alloy 800 Pipe Bend Exporter, Incoloy 825 Butt weld Pipe Fittings, ANSI B16.9 Alloy 825 Pipe Cap, UNS N08800 Pipe Elbow, ASTM B366 Incoloy 800HT Buttweld Fittings, UNS N08811 Seamless Fittings, DIN 1.4876 Stub End, Incoloy 800 Pipe Fittings Manufacturer in India.

Incoloy 800 Buttweld Fittings are generally used in the oil and gas pipeline. Paper and pulp are major industries where Incoloy 800HT Buttweld fittings are used. Moreover, Incoloy 825 Buttweld fittings are used in chemical refinery and general-purpose applications. The main objective of these Incoloy Buttweld fittings is to change the direction of flow, reduce pipe size and to attach auxiliary equipment. These fittings are available as outlets, caps, and elbows. Buttweld fittings also are known as welded pipe fittings offer many advantages in carbon and stainless steel. Incoloy Buttweld fittings are cost-effective as compared to their counterparts.

UNS N08825 LR Elbow, Incoloy® Alloy 825 Reducer, MSS SP-43 or MSS SP-79 Incoloy 800HT Welded Pipe Fittings, ANSI B16.28 Incoloy 825 Equal Tee Dealer, Alloy 800 Buttweld Elbow, Incoloy ASTM B366 Fitting, Incoloy 800/800HT Reducing Cross Trader, Incoloy 800 Piggable Bend Stockist, DIN 2.4858 SR Elbow Supplier in India.

Any extra preparation is not needed for Buttweld Fittings to create full penetration weld. Moreover, Incoloy 800/800HT/825 Buttweld Fittings offers you the option of the long radius(LR), short radius(SR) and 3R Elbows for various turn radius. Incoloy 800/800HT/825 Buttweld Fittings adds more strength to piping system by a continuous metal structure. In the automated welding process, Incoloy Buttweld fittings are preferred for its ease of preparation.

To ensure high quality of Incoloy Pipe Fittings in the last stage of production they are individually wrapped by hand. Job information like (material, size, heat number) along with all delivered Buttweld Fittings is also printed.

800/800HT/825 Incoloy ASTM B366 Buttweld Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Incoloy Elbow

Incoloy 800 90 Deg Elbow, Alloy 800HT 45 Deg Elbow, Incoloy 825 180 Deg Elbow, UNS N08800 LR Elbow, UNS N08811 SR Elbow, ANSI B16.9 Alloy 825 90 Degree Short Radius Elbow, DIN 1.4876 45 Deg Long Radius Elbow

Incoloy Alloy Tee

ASME B16.9 Alloy 800 Equal Tee, ASME SB366 Incoloy 800HT Pipe Tee, Incoloy 825 Butt weld Tee, UNS N08800 / N08811 Reducing Tee manufacturer, DIN 2.4858 Unequal Tee, Alloy UNS N08825 Straight Tee

Incoloy Eccentric Reducer

ASTM B366 Incoloy 800 Eccentric Reducer Supplier, B16.9 Incoloy 800HT Eccentric Reducer, SB366 Alloy 825 Eccentric Reducers, UNS N08800/ N08811 Eccentric Reducer

Incoloy Concentric Reducer

ANSI B16.9 Incoloy Alloy 800 Concentric Reducer Supplier, ASME SB366 Incoloy 800HT Concentric Reducer, ASTM B366 Incoloy 825 Concentric Reducers, UNS N08800 / N08811 / N08825 Concentric Reducer

Incoloy Long Stub End

ASME B16.9 Incoloy Alloy 800 Long Stub End Supplier, ASTM B366 Incoloy 800HT Long Stub Ends, Alloy 825 Lap Joint Stub End, UNS N08800 / N08811 / N08825 Long Stub End, Incoloy DIN 1.4876 Long Stub End

Incoloy Short Stub End

ASTM B366 Incoloy 800 Short Stub End Supplier, ASME B16.9 Incoloy Alloy 800HT Short Stub Ends, Alloy UNS N08800 / N08811 / N08825 Short Stub Ends, DIN 1.4876 Short Stub End

Incoloy Alloy Cap

ASTM B366 / SB366 Incoloy 800 Pipe Cap Supplier, ASME B16.9 Incoloy Alloy 800HT End Pipe Cap, Incoloy Alloy 825 Pipe End Cap, UNS N08825 Buttweld Cap, DIN 1.4876 End Cap

Incoloy Cross

ASTM B366 / SB366 Incoloy 800 Equal Cross, ASME B16.9 Incoloy Alloy 800HT Buttweld Cross, UNS N08800 / N08811 Unequal Cross, DIN 1.4876 Pipe Cross, Incoloy 825 Reducing Cross

Incoloy Pipe Bend

ASME SB 366 Incoloy Alloy 800 Pipe Bend Exporter, B16.9 Incoloy 800HT Piggable Bend, Incoloy 825 U Bend, UNS N08800 Long Radius Bend, DIN 2.4858 Buttweld Bend

Specifications :

ASTM B366 / ASME SB366

Dimensions :

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size :

Seamless Butt Weld Fittings : 1/2" - 10" | Welded Butt Weld Fittings : 1/2" - 48"

Schedule :

SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75

Bending Radius :

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type :

Seamless / ERW / Welded / Fabricated

Thickness :

20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Chemical Composition of Incoloy Alloy Seamless and Welded Pipe Fittings

Incoloy	800	800H	825
Ni	30-35	30-35	38.0 – 46.0
Fe	39.5 min	39.5 min	22.0 min
Cr	19-23	19-23	19.5 - 23.5
Cu	0.75 max	0.75 max	1.5 - 3.0
Ti	0.15-0.60	0.15-0.60	0.6 - 1.2
Al	0.15-0.60	0.15-0.60	0.2 max
C	0.1 max	0.05-0.1	0.05 max
Mn	1.5 max	1.5 max	1.0 max
S	0.015 max	0.015 max	0.015 max
Si	1.0 max	1.0 max	0.5 max
Mb	-	-	2.5 - 3.5

Mechanical Properties Of ASME SB366 Incoloy Buttweld Pipe Fittings

Inconel 800/800HT
Tensile Strength	Psi â€“ 75,000 , MPa â€“ 520
Yield Strength (0.2%Offset)	Psi â€“ 30,000 , MPa â€“205
Elongation	30 %
Inconel 825
Tensile Strength	Psi – 80,000 , MPa – 550
Yield Strength (0.2%Offset)	Psi – 32,000 , MPa –220
Elongation	30 %

Physical Properties of Incoloy 800/800HT/825 Pipe Fittings

Density lbm/in3	Thermal Conductivity (BTU/h ft. °F)	Electrical Resistivity (in x 10-6)	Modulus of Elasticity (psi x 106	Coefficient of Thermal Expansion (in/in)/ °F x 10-6	Specific Heat (BTU/lb/ °F)	Melting Range (°F)
at 68°F: 0.285	9.4 at 212°F	28.3 at 68°F	28	9.4 at 32 – 212°F	0.1200 at 68°F to 212°F	2500 to 2590
	12.4 at 932 °F	39.4 at 752°F		10.2 at 32 – 1000°F
		49.6 at 1652 °F		10.4 at 32 – 1500°F
